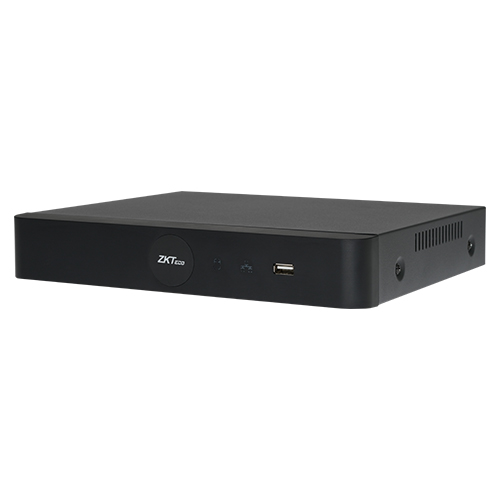

MODEL: Z8504NEQ-4P-S

· H.265/H.264 decoding · Support 4-channel 4K IP cameras input & preview · 4 channels realtime playback synchronously · HDMI output up to 4K UHD · 4 PoE ports, up to 250m transmission (by 10Mbps) · Embedded intelligent classification algorithm based on computer vision technology · Pair with Biosense IP cameras to form a video surveillance system with multiple intelligent analytics · Support multiple web browsers login · P2P cloud service supported

• System

• Main Processor: Multi-core embedded processor

• Operating System: Embedded LINUX

• Operating Interface: Web browser & Local GUI

• Video and Audio

• Max. IPC Input: 4CH

• Two-way Talk: Support

• Audio Compression: G.711u

• Max audio input: 4CH by IPC

• Third Party Camera Access: ONVIF & RTSP


• Live View Capability:  1CH@8MP(25/30fps) / 4CH@D1(25/30fps)

• Display Split: 1/4 CH

• Resolution:  8MP(3840*2160) / 5MP(2592*1944) / 2MP(1920*1080) /1.3MP(1280*1024) / 1MP(1280*720) / D1(1024*768)

• Recording

• Video Compression: H.265 / H.264

• Recording Resolution:  8MP/5MP/3MP/1080P/960P/720P/D1/VGA/4CIF/DCIF/2CIF/CIF/QCIF

• Max. Decoding Capability:  4CH@8MP(25/30fps)

• Incoming/Outgoing Bandwidth: 40/40 Mbps

• Stream Type:  Video, Video & Audio

• Bit Rate:  Main Stream: 16Kbps ~ 8192Kbps Sub Stream: 50Kbps ~ 700Kbps

• Storage Method: Local hard drive and network


• Record Mode:  Schedule, Manual, Motion Detection, IVA Events Alarm

• Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

• Playback and Backup

• Playback Channel:  4CH synchronously playback

• Search Mode:  Time/ Date, Alarm Types, IVA Search

• Playback Function:  Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward, Fast Play, Slow Play, Single Frame Play, Hide/Show Time Bar, Backup, Snapshot, Full Screen

• Backup Mode: USB Device / Network Remote

• Intelligent Video Analytics

• IVA by Camera:  Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Object Lost/Left


• Local IVA Functions displaying:  Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Counting Statistics, Object Lost/Left

• IVA by Device(Number of Channels):  Up to IPC
• IVA by Camera (Number of Channels): 4
• IVA Alarm:
• Smart IVA Alarm: Line Crossing, Area Detection, Smart Motion Detection (base on human and vehicle classification), Target Counting, Counting Statistics, Object Lost/Left
• Regular Detection: Motion Detection / Video Shelter / Video Loss
• Anomaly Alarm: HDD Full, No HDD, S.M.A.R.T error, Network disconnected, IP conflict
• Alarm Linkage: Preview, Recording, Snapshot,Buzzer, Preset, Email, Tour, Upload center
• Smart Search: Support smart search out target video by human and vehicle classification filtering
• Network

• Network Protocol:  TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, IPv4, UDP, SSL/TLS, PPPoE, SNMP, WebSocket, P2P

• Max. Online Users: 20

• Web Browser: Google Chrome/Microsoft Edge/Firefox/Safari/Opera
• Operation System: Windows
• Management Platform: ZKBio CVSecurity / ZKBio Access IVS / AntarVis 2.0


• Mobile Application:  AntarView Pro+ (iOS & Android)

• P2P Cloud Service: Support


• Interoperability: ONVIF Profile S/G, SDK, CGI, API

• Storage & Auxiliary Interface

• SATA Ports: 1 SATA Port, up to 8 TB capacity


• HDMI: 1 * HDMI (4K)

• VGA: 1920*1080/60Hz, 1280*1024/60Hz

• Network Interface 1 * RJ - 45 Port (10/100Mbps)

• 3 * USB 2.0

• PoE Ports: 4 PoE, 10/100 Mbps self adaptive
• Standard: IEEE802.3af/at sefl adaptive


• Audio Input / Output: 0/1 output

• Power supply: DC 48V/1.5A


• Power Consumption:  ≦ 24W (without HDD)

• General

• Casing 1U

• Working Temperature -10°C ~ 55°C / 14°F ~ 131°F

• Working Humidity 10% ~ 90%

• Dimensions (L*W*H) 255 * 210 * 43 (mm)

• Net Weight 2.8kg (without HDD)

• Gross Weight 3.3kg (without HDD)
