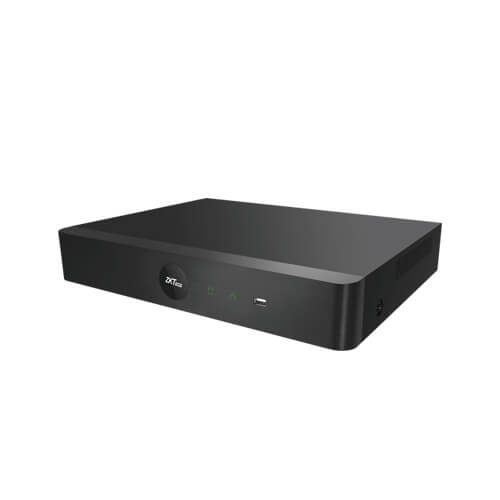

Model: Z8516 16/32-Channel 4K & H.265+ Network Video Recorder

Features
• H.265+/H.265/H.264+/H.264 Decoding
• Support 16/32CH 4K Resolution Preview and Playback
• Support HDMI up to 4K output
• DHCP, FTP, DNS, DDNS, NTP, UPNP, RTSP etc.

• ONVIF Profile S Compatible

• Cloud Service, P2P
• Mobile phone remote monitoring (iOS, Android)
• Multi-browser access (IE, Chrome, Firefox, Safari)

Parameters

• System

• Processor: Multi-core Embedded Processor

• Operation System: Embedded Linux

• IVA Alarm

• Local IVA Functions: Target Counting, Object Detection, Intrusion, Tripwire

• Regular Detection: Motion Detection / Video Tampering / Video Loss

• I/O Port and Storage

• Network Interface: 1 RJ-45 port (10/100Mbps)

• USB: 2*USB 2.0

• HDMI: 1 * 4K HDMI

• VGA: 1 * VGA

• Alarm Input: N/A

• Alarm Output: N/A

• HDD: 2 SATA, up to 8TB capacity for each HDD

• RAID: N/A

• Playback and Backup

• Playback Channel: 16

• Search Mode: IVA Search / Time / Motion Detection

• Playback Function: Play, Stop, Play forward, Play backward, 30 seconds forward, 30 seconds backward, Fast play, Slow play, Single frame play, Hide/Show the time bar, Backup, Snapshot, Full screen

• Backup Mode: USB device / Network

• Video / Audio

• Max. IPC Input: Z8516NFR: 16, Z8532NFR: 32

• Audio Compression: G.711a

• Two-way Talk: N/A

• Recording

• Video Compression: H.265+ / H.265 / H.264+ / H.264

• Recording Resolution: 8MP / 5MP / 3MP / 1080P / 960P / 720P

• Incoming Bandwidth: 80Mbps

• Bitrate: 16K - 8Mbps

• Record Mode: Manual / External Alarm / Motion / Scheduled / IVA Alarm

• Network

• Network Protocol: TCP/IP, HTTP, DDNS, SMTP (SSL), DHCP, PPPoE, UPnP, NTP, P2P

• Max. Online Users: 5

• Mobile Application: AntarView Pro

• Interoperability: Onvif Profile S, SDK

• Power Supply: DC12V 3A

• Consumption: ≤ 20W (Without HDD)

• General

• Working Temperature: -10℃ ~ +55℃

• Working Humidity: 10 ~ 90%

• Dimensions: 325mm * 246mm * 50mm

• Net Weight: 3KG

• Gross Weight: 3.5KG

• Ordering Information

• Type: Non PoE NVR

• Part Number: Z8516NFR / Z8516NFR
