  2. NVR: ZKTeco Biosense H.265 Non-PoE NVR 36ch, 4K Resolution Preview and Playback

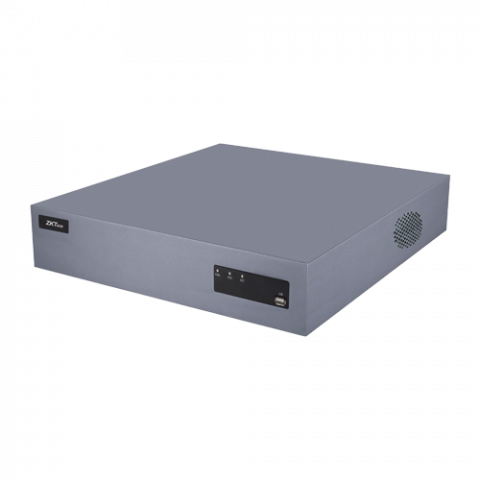

Product Image

NVR: ZKTeco Biosense H.265 Non-PoE NVR 36ch, 4K Resolution Preview and Playback

1'629'600.00 ₮ 1'629'600.00 ₮
 Сагсанд нэмэх  Авах
NVR: ZKTeco Biosense H.265 Non-PoE NVR 36ch, 4K Resolution Preview and Playback

NVR: ZKTeco Biosense H.265 Non-PoE NVR 36ch, 4K Resolution Preview and Playback

1

1'629'600.00 ₮ 1'629'600.00 ₮ 1629600.0 MNT

1'629'600.00 ₮

(0% Off)
Days
:
Hours
:
Mins
:
Secs

    Энэ зохимж байхгүй байна.

    Баркод:
    N/A
    Хуваалцах:

    MODEL: Z8536NMR-S

    • H.265+ / H.265 / H.264 decoding • Support 36-channel 4K Resolution Preview and Playback • Support HDMI output up to 4K high definition • DHCP, FTP, DNS, DDNS, NTP, UPNP, RTSP, etc. • Support multiple web browsers login • P2P cloud service supported • ONVIF Profile S compatible, Mobile phone remote monitoring

    • System

    • Main Processor: Multi-core embedded processor

    • Operating System: Embedded LINUX

    • Video and Audio

    • Max. IPC Input: 36CH

    • Two-way Talk: 1 channel Input, 1 channel Output, RCA

    • Audio Compression: G.711a

    • Recording

    • Video Compression: H.265+ / H.265 / H.264+ / H.264

    • Recording Resolution: 8MP / 5MP / 3MP / 1080P / 960P / 720P

    • Max. Decoding Capability: 8MP (25 / 30fps)

    • Incoming Bandwidth: 216 Mbps

    • Bit Rate: 16Kbps ~32Mbps

    • Record Mode: Manual, External alarm, Motion Detection, Scheduled, IVA Events Alarm

    • Playback and Backup

    • Playback Channel: 16CH

    • Search Mode: Time, Motion detection, IVA Search

    • Playback Function: Play, Stop, Play Forward, Play Backward, 30 Seconds Forward, 30 Seconds Backward,
      Fast Play, Slow Play, Single Frame Play, Hide / Show Time Bar, Backup, Snapshot, Full Screen

    • Backup Mode: USB Device / Network

    • IVA Alarm

    • Local IVA Functions: Target counting, Object Abandon/Missing, Intrusion, Tripwire, Video Shelter, Scene change

    • Regular Detection: Motion Detection / Video Tampering / Video Loss

    • Network

    • Network Protocol: TCP/IP, HTTP, DDNS, SMTP (SSL), DHCP, PPPoE, UPnP, NTP, P2P

    • Max. Online Users: 5

    • Mobile Application: AntarView Pro

    • Interoperability: ONVIF Profile S, SDK

    • Input Output Port and Storage

    • HDD : 4 SATA Ports, up to 8 TB for each HDD

    • HDMI 1 * HDMI (4K)

    • 1* VGA 1920*1080/60Hz, 1280*1024/60Hz

    • Network Interface 2 * RJ - 45 Port (1,000Mbps)

    • 1 * USB 2.0, 1 * USB 3.0

    • Alarm Input / Output 4/1

    • Power

    • DC 12V5A

    • Power Consumption 35W (Without HDD)

    • General

    • Casing 2U

    • Working Temperature -10°C ~ 55°C / 14°F ~ 131°F

    • Working Humidity 10% ~ 90%

    • Dimensions (L*W*H) 430 * 318 * 65.5 (mm)

    • Net Weight 5.5kg (without HDD)

    • Gross Weight 6kg (without HDD)
